• TMC Series

    TMC Series

    · Support isolate interface dimming Triac/0-10V/1-10V/10V PWM/Rx dimming
    · Full range input voltage 100-277VAC
    · Soft dimming and flicker-free at any brightness
    · Dimming range 0.1~100%, support multiple lights dimming
    · High PF, high efficiency, low THD
    · SELV and Class 2 design
    · UL certification
    · Suitable for dry, damp and wet location (IP65)
    · Nominal lifetime up to 100,000 h
    · 5-year warranty
  • TMC Series

    TMC Series

    · Support isolate interface dimming Triac/0-10V/1-10V/10V PWM/Rx dimming
    · Full range input voltage 100-277VAC
    · Soft dimming and flicker-free at any brightness
    · Dimming range 0.1~100%, support multiple lights dimming
    · High PF, high efficiency, low THD
    · SELV and Class 2 design
    · UL certification
    · Suitable for dry, damp and wet location (IP65)
    · Nominal lifetime up to 100,000 h
    · 5-year warranty
  • TMC Series

    TMC Series

    · Support isolate interface dimming Triac/0-10V/1-10V/10V PWM/Rx dimming
    · Full range input voltage 100-277VAC
    · Soft dimming and flicker-free at any brightness
    · Dimming range 0.1~100%, support multiple lights dimming
    · High PF, high efficiency, low THD
    · SELV and Class 2 design
    · UL certification
    · Suitable for dry, damp and wet location (IP65)
    · Nominal lifetime up to 100,000 h
    · 5-year warranty

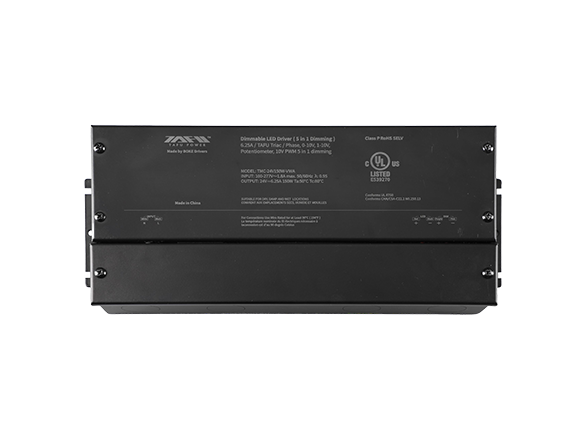

  • /upload/images/20260609/e0fa3c611053f4c00fc60fc42a5e858b.png

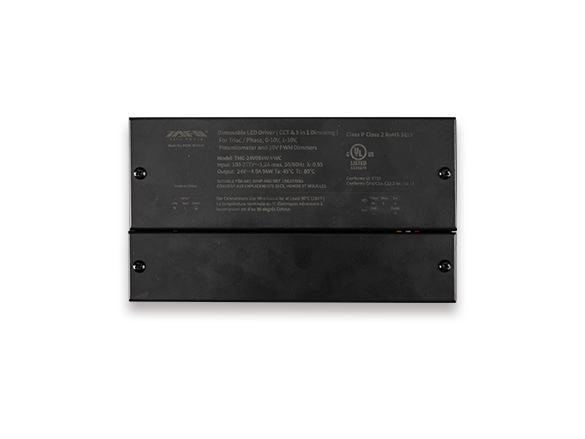

  • /upload/images/20260609/d7fc108a792c72657dd8d49c9ea7e47f.png

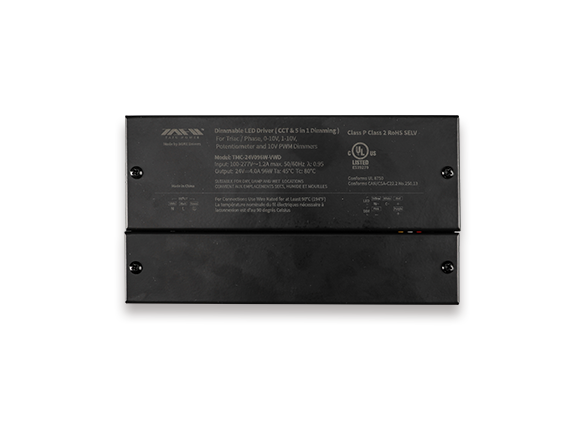

  • /upload/images/20260609/3b81c0baa7ca07c53127a4d463d01947.png

Parameters

White

Part No.Input VoltageOutput PowerOutput VoltageOutput CurrentPower FactorCertificateDimension(mm)

TMC-12V030W-VWA

100-277VAC30W MAX.12VDC2.5A>0.95

UL/cUL/FCC/Class 2/

Class P/RoHS

L172*W87.5*H41mm

[L6.8*W3.4*H1.6in.]

TMC-24V030W-VWA100-277VAC30W MAX.24VDC1.25A>0.95

UL/cUL/FCC/Class 2/

Class P/RoHS

L172*W87.5*H41mm

[L6.8*W3.4*H1.6in.]

TMC-12V060W-VWA100-277VAC

60W MAX.

12VDC5A>0.95

UL/cUL/FCC/Class 2/

Class P/RoHS

L195*W96.5*H41mm

[L7.7*W3.8*H1.6in.]

TMC-24V060W-VWA

100-277VAC

60W MAX.

24VDC2.5A>0.95

UL/cUL/FCC/Class 2/

Class P/RoHS

L195*W96.5*H41mm

[L7.7*W3.8*H1.6in.]

TMC-12V096W-VWA100-277VAC

96W MAX.

12VDC8A>0.95

UL/cUL/FCC/Class 2/

Class P/RoHS

L220.5*W96.5*H41mm

[L8.7*W3.8*H1.6in.]

TMC-24V096W-VWA

100-277VAC

96W MAX.

24VDC4A>0.95

UL/cUL/FCC/Class 2/

Class P/RoHS

L220.5*W96.5*H41mm

[L8.7*W3.8*H1.6in.]

TMC-12V150W-VWA

100-277VAC150W MAX. 12VDC12.5A>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L252.5*W109*H43mm

[L9.9*W4.3*H1.7in.]

TMC-24V150W-VWA

100-277VAC150W MAX. 24VDC

6.25A

>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L252.5*W109*H43mm

[L9.9*W4.3*H1.7in.]

TMC-12V200W-VWA

110-277VAC200W MAX. 12VDC

16.66A

>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L252.5*W109*H43mm

[L9.9*W4.3*H1.7in.]

TMC-24V200W-VWA

110-277VAC200W MAX. 24VDC

8.33A

>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L252.5*W109*H43mm

[L9.9*W4.3*H1.7in.]

TMC-12V300W-VWA110-277VAC300W MAX. 12VDC25A>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L297.5*W109*H43mm

[L11.7*W4.3*H1.7in.]

TMC-24V300W-VWA

110-277VAC300W MAX. 24VDC12.5A>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L297.5*W109*H43mm

[L11.7*W4.3*H1.7in.]

TMC-48V300W-VWA

110-277VAC300W MAX. 48VDC6.5A>0.95

UL/cUL/Class P/

TYPE HL/RoHS

L297.5*W109*H43mm

[L11.7*W4.3*H1.7in.]

TMC-24V192W-VWB110-277VAC192W MAX.24VDC4A*2

>0.95

UL/cUL//Class 2/

Class P/TYPE HL/RoHS

L252.5*W109*H43mm

[L9.9*W4.3*H1.7in.]

TMC-48V192W-VWB110-277VAC192W MAX.48VDC2A*2

>0.95

UL/cUL//Class 2/

Class P/TYPE HL/RoHS

L252.5*W109*H43mm

[L9.9*W4.3*H1.7in.]

TMC-24V288W-VWB110-277VAC288W MAX.24VDC4A*3

>0.95

UL/cUL//Class 2/

Class P/TYPE HL/RoHS

L297.5*W109*H43mm

[L11.7*W4.3*H1.7in.]

TMC-48V288W-VWB110-277VAC288W MAX.48VDC2A*3

>0.95

UL/cUL//Class 2/

Class P/TYPE HL/RoHS

L297.5*W109*H43mm

[L11.7*W4.3*H1.7in.]


CCT-Tunable / Dim-to-Warm

Part No.Input VoltageOutput PowerOutput VoltageOutput CurrentPower FactorCertificateDimension(mm)

TMC-24V030W-VWC

(CCT-Tunable)

100-277VAC30W MAX.24VDC1.25A>0.95

UL/cUL//Class 2/

Class P/TYPE HL/RoHS

L172*W87.5*H41mm

[L6.8*W3.4*H1.6in.]

TMC-24V060W-VWC

(CCT-Tunable)

100-277VAC60W MAX.24VDC2.5A>0.95

UL/cUL//Class 2/

Class P/TYPE HL/RoHS

L195*W96.5*H41mm

[L7.7*W3.8*H1.6in.]

TMC-24V096W-VWC

(CCT-Tunable)

100-277VAC

96W MAX.

24VDC4A>0.95

UL/cUL//Class 2/

Class P/TYPE HL/RoHS

L220.5*W96.5*H41mm

[L8.7*W3.8*H1.6in.]

TMC-24V030W-VWD

(Dim-to-Warm)

100-277VAC

30W MAX.

24VDC1.25A>0.95

UL/cUL//Class 2/

Class P/TYPE HL/RoHS

L195*W96.5*H41mm

[L7.7*W3.8*H1.6in.]

TMC-24V060W-VWD

(Dim-to-Warm)

100-277VAC

60W MAX.

24VDC2.5A>0.95

UL/cUL//Class 2/

Class P/TYPE HL/RoHS

L195*W96.5*H41mm

[L7.7*W3.8*H1.6in.]

TMC-24V096W-VWD

(Dim-to-Warm)

100-277VAC

96W MAX.

24VDC4A>0.95

UL/cUL//Class 2/

Class P/TYPE HL/RoHS

L220.5*W96.5*H41mm

[L8.7*W3.8*H1.6in.]


DETAILS

1 - 副本-2.jpg




1 - 副本-3.jpg
